12v Pure Sine Wave Inverter 2KW Hybrid Solar Inverter

Product Categories
Shenzhen Leeque Technology & Development Co., Ltd
Contact Now

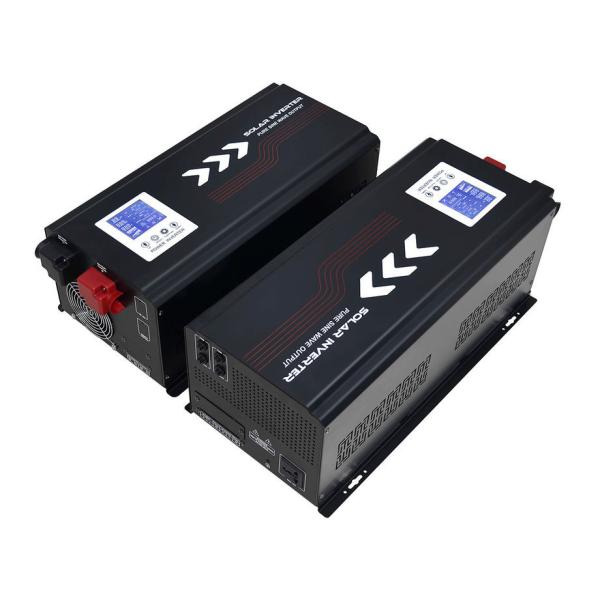

12v Pure Sine Wave Inverter 2KW Hybrid Solar Inverter

Brand Name : lEEQUE

Model Number : YQ-T1000W

Certification : CE&IEC

Place of Origin : made in China

MOQ : 1pc

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000+pc-per month

Delivery Time : 5-30days

Packaging Details : 1000W-3000W:660*385*350mm/pc;4000W-7000W:715*385*350mm

Raded Power : 1000W

Bttery Voltage : 12V/24VDC

DC Input Voltage Range : 10.5-15VDC(Single battery voltage)

AC Input Voltage Range : 85V~138VAC/89V~144VAC/93V~150VAC/170V~275VAC/178V~288VAC/186V~300VAC

AC Input Frequency Range : 45Hz~65Hz

Efficienycy : ≥85%

Output Voltage(Battery Mode) : 110VAC±2%/115VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%

Oput Frequency(Battery Mode) : 50/60Hz±1%

Output Wave(Bttery Mode) : Pure Sine Wave

AC Output Voltage Range : 110VAC±10%/115VAC±10%/120VAC±10%/220VAC±10%/240VAC110VAC±2%/115VAC±2%/120VAC±2%/220VAC±10%

AC Output Frequency Range : Tracking Automatically

Charging Mode : MPPT or PWM

Charging current : 10A ,20A ,30A,40A,50A,60A

PV Input Voltage Range : 12V System:15V -440V;24V System：30V-44V；48V System：60V-88V

Max PV Input Voltage (At 25℃) : 12V/24V System：50V；48V System：100V

PV Array Maximum Power : 2V System：140W,280W,420W,560W,700W,840W； 24V System：280W,560W,840W,1120W,1400W,1680W； 48V System：560W,1120W,1680W,2240W,2800W,3360W

Working Mode : Battery First/AC First/Saving Energy Mode

C Charging current（selectable） : 0~30A

Transfer Time : ≤4ms

Display : LCD（External LCD Display(Optional)）

Thermal method : Cooling fan in intelligent control

Protection : Over-load / Over-discharge / Short circuit / High temperayure / Reverse polarity

Communication : RS232/RS485/APP/SNMP/GSM(Optional)

Contact Now

YQT1000W-7000W Hybrid Solar Inverter

YQ-T Hybrid Inverter

Technical Parameter

Rated Power:1000W-7000W,Battery Voltage:DC12V-DC96V

Output:AC110V or AC220V/50Hz or 60Hz

Feature

  1. Integrated LCD display,One-button start with an external display screen(optional)
  2. Built-in MPPT or PWM Charge controller optional
  3. Supports diesel or gasoline generator,adapt anytough electricity situation

Product certification

CE&IEC

Application area

  1. House appliance:air conditioner,lamp,rice cooker,etc.
  2. Office equipment:computers,printers,etc.
  3. Electronic communications:monitoring devices,communication stations,etc.
  4. Electric tools:electric drill,punching machine,water pump,etc.
  5. Vehicle and ship equipment:ambulances,ships,traffic lights,etc.
  6. Emergency power supply:standby power supply

Product Description

Feature

  1. Pure sine wave output
  2. Industrial high efficiency I-shape transformer;
  3. AC charge current 0-30A adjustable:AVR output;
  4. Built-in MPPT or PWM charge controller optional;
  5. Integrated LCD display:One-button start with an external display screen(Optioal);
  6. Three types working modes:AC first,DC first,energy-saving mode;
  7. Supports diesel or gasoline generator,adapt anytough electricity situation;
  8. Various communication ports and remote controls(RS232/RS485/APP/SNMP/GSM optional)

Hybrid Inverter Parameters

Model:YQT YQT1000W YQT1500W YQT2000W YQT3000W YQT4000W YQT5000W YQT6000W YQT7000W
Rated Power 1000W 1500W 2000W 3000W 4000W 5000W 6000W 7000W
Battery Voltage 12/24VDC 12/24/48VDC 24/48VDC 48VDC 48/96VDC
Size(L*W*Hmm) 595*315*225 647*315*235
Packing Size(L*W*Hmm) 660*385*350 715*385*350
N.W.(kg) 17 24 26 29 41.5 42.5 45.5 48
G.W.(kg)(Carton Packing) 20 27 29 32 45 46 49 52
Parameter
Input DC Input Voltage Range 10.5-15VDC(Single battery voltage)
AC Input Voltage Range 85V～138VAC/89V～144VAC/93V～150VAC/170～275VAC/178V～288VAC/186V～300VAC
AC Input Frequency Range 45Hz～65Hz

Output

 Efficiency ≥85%
Output Voltage(Battery Mode) 110VAC±2%/115VAC±2%/120VAC±2%/220VAC±2%/230VAC±2%/240VAC±2%
Output Frequency(Battery Mode) 50/60Hz±1%
Output Wave(Battery Mode) Pure Sine Wave
AC Output Voltage Range 110VAC±10%/115VAC±10%/120VAC±10%/220VAC±10%/230VAC±10%/240VAC±10%
AC Output Frequency Range Tracking Automatically

Inside

Solar controller

 Charging Mode MPPT or PWM
Charging current 10A,20A,30A,40A,50A,60A
PV Input Voltage Range 12V system:15V-44V;24V System:30V-44V;48V System:60V-88V
Max PV Input Voltage(AT25℃) 12V/24V system:50V;48V system:100V
PV Array Maximum Power

12V system:140W,280W,420W,560W,700W,840W;

24V system:280W,560W,840W,1120W,1400W,1680W;

48V system:560W,1120W,1680W,2240W,2800W,3360W;
Working Mode Battery First/AC First/Saving Energy Mode
AC Charging current(selectable) 0～30A
Transfer Time ≤4ms
Display LCD(External LCD Display(Optional)
Thermal method Cooling fan in intelligent control
Battery Type(selectable) LEAD Charge Voltage:14V;Float Voltage:13.8V(Single battery Voltage, x2 for 24V; x4for 48V
OP-LE Charge Voltage:14.2V;Float Voltage:13.8V(Single battery voltage, x2 for24V; x4 for 48V
Lithium Charge Voltage:13V;Float Voltage:12.6V(Single battery voltage, x2 for24V; x4 for 48V
Remark The Charging parameters of other types battery can be user-defined
Protection Over-load/Over-discharge/Short circuit/High temperature/Reverse polarity
communication RS232/RS485/APP/SNMP/GSM(Optional)
Environment Noise ≤55dV
Temperature -10℃~40℃
Humidity 0~95%( No condensation)
Note:All specifications are subject to charge without prior notice
